Indicator Templates Provider

IndicatorTemplatesProvider is responsible for saving and retrieving the Indicator Templates.

Indicators Template is a set of indicators combined together, which can be easily applied to the chart in one click.

This feature significantly increases the user experience, as user can create multiple templates for different purposes and switch between them quickly.

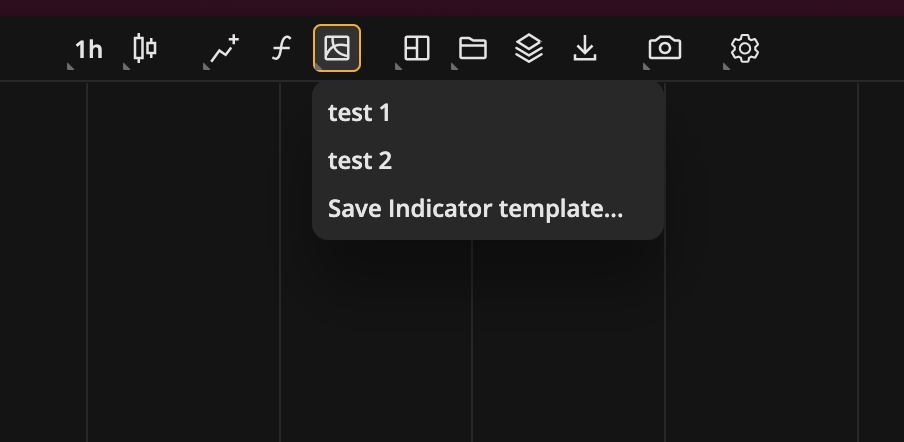

This is how it looks on chart:

And like any other provider, IndicatorTemplatesProvider is a way to connect your storage of user's Indicator Templates with dxchart5-react application.

API Reference​

IndicatorsTemplateProvider

IndicatorsTemplateProvider.createTemplate
IndicatorsTemplateProvider.createTemplate(template: IndicatorTemplateNamed): Promise<string>

Creates new indicator template. Returns either an `id` of newly created template or error.

Parameters
template: IndicatorTemplateNamed
Returns
Promise<string>
IndicatorsTemplateProvider.deleteTemplate
IndicatorsTemplateProvider.deleteTemplate(id: string): Promise<void>

Deletes an indicator template by `id`.

Parameters
id: string
Returns
Promise<void>
IndicatorsTemplateProvider.updateTemplate
IndicatorsTemplateProvider.updateTemplate(template: IndicatorTemplate): Promise<void>

Updates an indicator template.

Parameters
template: IndicatorTemplate
- full {@link IndicatorTemplate} model with updates.
Returns
Promise<void>
IndicatorsTemplateProvider.getTemplates
IndicatorsTemplateProvider.getTemplates(): Promise<IndicatorTemplates>

Returns all available indicator templates for a user.

Returns
Promise<IndicatorTemplates>

Example​

Here's an implementation of IndicatorTemplatesProvider that stores users templates in the localStorage.

/** Copyright ©2024 Devexperts LLC.
All rights reserved. Any unauthorized use will constitute an infringement of copyright.
In case of any questions regarding types of use, please contact legal@devexperts.com.
This notice must remain intact.
**/
import { replaceInArray } from '@devexperts/dxcharts-lite/dist/chart/utils/array.utils';
const INDICATOR_TEMPLATE_LS_KEY = 'indicators';
/**
 * Creates {@link IndicatorsTemplateProvider} that stores {@link IndicatorTemplates} in {@link localStorage}.
 */
export const createLocalStorageIndicatorsTemplateProvider = () => {
    const getIndicatorTemplatesFromLS = () => {
        const indicatorTemplates = localStorage.getItem(INDICATOR_TEMPLATE_LS_KEY);
        if (!indicatorTemplates) {
            return undefined;
        }
        return JSON.parse(indicatorTemplates);
    };
    const setIndicatorTemplatesToLS = (data) => {
        localStorage.setItem(INDICATOR_TEMPLATE_LS_KEY, JSON.stringify(data));
    };
    const generateRandomUUID = () => Math.random().toString(36).substring(2, 11);
    const createTemplate = (template) => {
        const id = generateRandomUUID();
        console.log(`Creating new template: ${id}`);
        const templateWithId = Object.assign({ id }, template);
        const templatesData = getIndicatorTemplatesFromLS();
        if (!templatesData) {
            setIndicatorTemplatesToLS([templateWithId]);
        }
        else {
            setIndicatorTemplatesToLS([...templatesData, templateWithId]);
        }
        return Promise.resolve(id);
    };
    const getTemplates = () => {
        const templatesData = getIndicatorTemplatesFromLS();
        return Promise.resolve(templatesData !== null && templatesData !== void 0 ? templatesData : []);
    };
    const updateTemplate = (template) => {
        const templatesData = getIndicatorTemplatesFromLS();
        if (!templatesData) {
            return Promise.resolve(void 0);
        }
        const updatedTemplates = replaceInArray(templatesData, item => item.id === template.id, template);
        setIndicatorTemplatesToLS(updatedTemplates);
        return Promise.resolve(void 0);
    };
    const deleteTemplate = (id) => {
        const templatesData = getIndicatorTemplatesFromLS();
        if (!templatesData) {
            return Promise.resolve(void 0);
        }
        setIndicatorTemplatesToLS(templatesData.filter(template => template.id !== id));
        return Promise.resolve(void 0);
    };
    return {
        createTemplate,
        getTemplates,
        updateTemplate,
        deleteTemplate,
    };
};
